Telescope Mounts: The Complete Guide to Every Type

Telescope mounts are the most overlooked part of any setup — and the part that decides whether your night ends in crisp, steady views or a frustrating, jittery mess. You can put a world-class lens or mirror on a flimsy mount and see almost nothing useful, because at high magnification every tiny wobble is magnified too. Choosing the right mount is often more important than choosing the telescope tube itself.

Quick answer: A telescope mount is the mechanical platform that holds your telescope steady and lets you point and track the sky. The two fundamental types are altazimuth (up/down and left/right, like a camera tripod) and equatorial (one axis tilted to match Earth’s rotation so a single motion follows the stars). Alt-az mounts — including Dobsonians — are simplest and best for visual observing; equatorial mounts are essential for long-exposure astrophotography. GoTo and modern harmonic mounts add motorized pointing and tracking.

This guide explains every telescope mount type you are likely to meet, how each one works, what it is good and bad at, and how to pick the right one for your budget and goals. It is the companion to our broader guide to the types of telescopes — where that article focuses on the optics (the tube), this one focuses on what holds the tube up.

What this guide covers

• What is a telescope mount (and why it matters)
• Alt-azimuth vs equatorial: the core decision
• Altazimuth mounts
• Dobsonian mounts
• Equatorial mounts (GEM and fork)
• GoTo and computerized mounts
• Harmonic (strain-wave) mounts
• Star trackers for cameras
• Classic and unusual mount designs
• Types of telescope mounts at a glance
• Mount capacity and the payload rule
• How to choose the right mount
• Setting up, polar alignment, and tracking
• Frequently asked questions

What is a telescope mount, and why does it matter?

A telescope mount is the mechanical base and head that supports the optical tube, lets you aim it at a target, and — ideally — tracks that target smoothly as the sky appears to drift overhead. A complete mount usually has three parts: the head (the moving mechanism with two axes), the tripod or pier that raises it to a comfortable height, and, on tracking mounts, a set of motors and electronics.

Here is why the mount deserves your attention. The sky is not still: Earth’s rotation makes every star drift westward at roughly 15 arcseconds per second of time. At low power that drift is slow, but at 150× or 200× a planet can cross your eyepiece in under a minute, and any vibration from a breeze or a finger-tap takes seconds to die down on a weak mount. A steady mount is what turns good optics into a good view. Veteran observers have a saying: spend as much on the mount as on the telescope — and for astrophotography, spend more.

That advice scales with magnification and with exposure time. For casual lunar and planetary peeks, a modest mount is fine. For deep-sky imaging, where the camera shutter may stay open for minutes, the mount is the single biggest factor in whether your stars come out as pinpoints or streaks. If you are weighing your first imaging rig, our astrophotography fundamentals guide walks through how the mount fits the wider system.

Alt-azimuth vs equatorial: the core decision

The first question is not the brand — it is the geometry. Almost every telescope mount is built around one of two coordinate systems, and the choice shapes everything else.

• Altazimuth (alt-az) moves the scope in two intuitive directions: up–down (altitude) and left–right (azimuth), exactly like a photo tripod or a pair of binoculars on a pan head. It is simple, quick to set up, and needs no alignment to the sky.
• Equatorial (EQ) tilts one axis — the right ascension or polar axis — so it points at the celestial pole (near Polaris in the Northern Hemisphere). Once aligned, a single slow rotation of that one axis follows any star across the whole sky.

Why does that single-axis trick matter so much? Because the stars trace curved arcs around the pole, an alt-az mount has to constantly nudge both axes in changing amounts to keep up — and even when a computer does that perfectly, the field of view slowly rotates. That field rotation smears long exposures. An equatorial mount cancels the curve by matching Earth’s tilt, so one steady motion tracks cleanly with no rotation. That is the whole reason serious deep-sky imagers use equatorial mounts.

The trade-off: equatorial mounts are heavier, need counterweights, and require a short polar alignment at the start of each session. For visual observing, where you are not stacking minutes of light, that complexity buys you little. The short version: alt-az for visual and planetary, equatorial for deep-sky photography. Everything below is a variation on these two ideas.

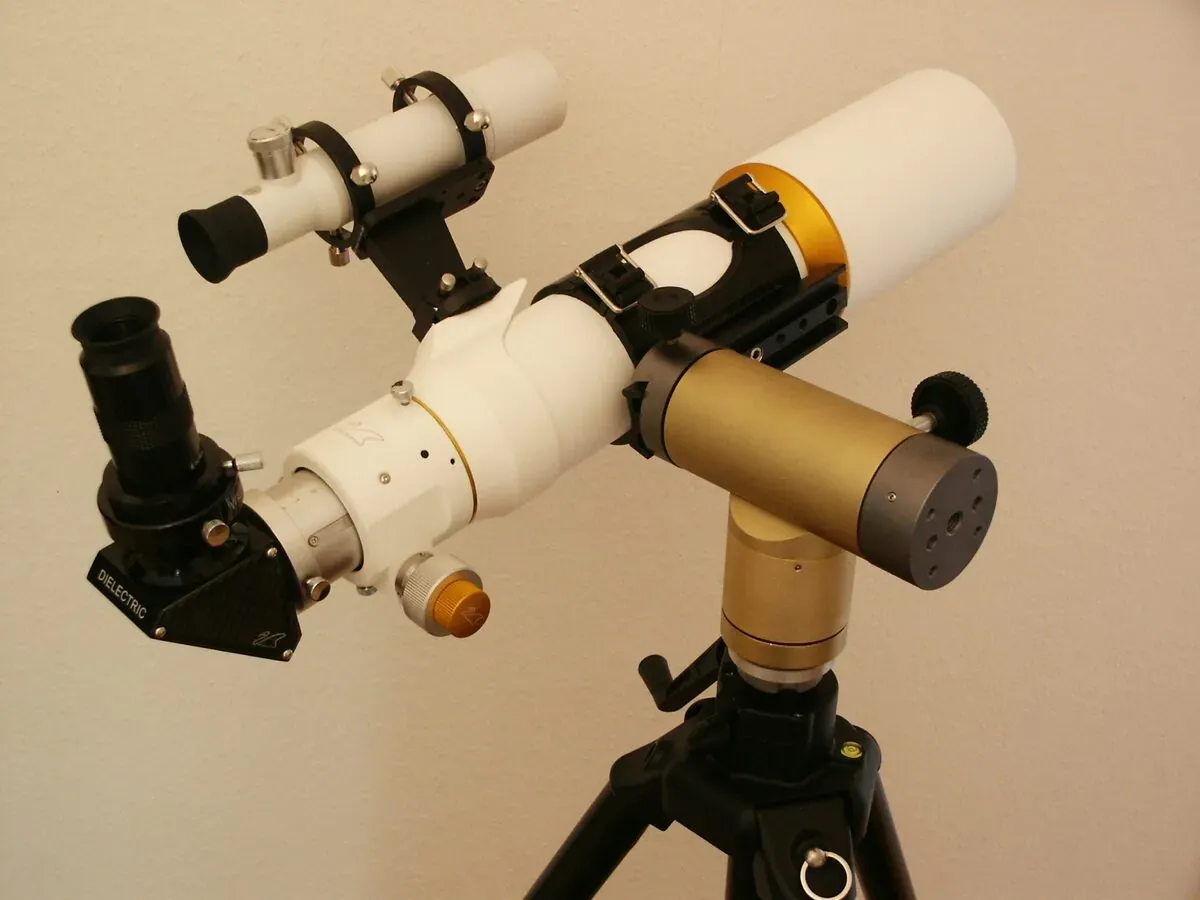

Altazimuth mounts

An altazimuth mount is the simplest way to hold a telescope. You loosen a clutch, point the tube where you want, and the view stays put. There is no polar alignment and almost no learning curve, which is why alt-az mounts dominate beginner and grab-and-go setups.

Manual alt-az mounts come in a few flavors. A panhandle or single-arm fork head (common on small refractors and tabletop scopes) uses slow-motion control knobs for fine nudges. A twin-tine or yoke design supports the tube on both sides. The lighter and stiffer the head, the steadier the view — a small, well-damped alt-az often outperforms a wobbly “department-store” equatorial that came bundled with a cheap scope.

Best for: the Moon, planets like Jupiter and Saturn, double stars, bright clusters, quick sessions, and anyone who wants to be observing within a minute of stepping outside. Galileo himself used a simple altitude-over-azimuth arrangement; you can read how those first instruments worked in our profile of Galileo Galilei.

Weakness: manual alt-az mounts do not track the sky, so objects drift out of view and you must re-nudge constantly at high power. They are also poor for long-exposure imaging because of field rotation. For wide-field eyepiece sweeping and planetary work, that is a fair trade for the simplicity. Altazimuth mounts are also what most professional observatory giants now use, paired with computer control — proof the design scales when motors handle the math.

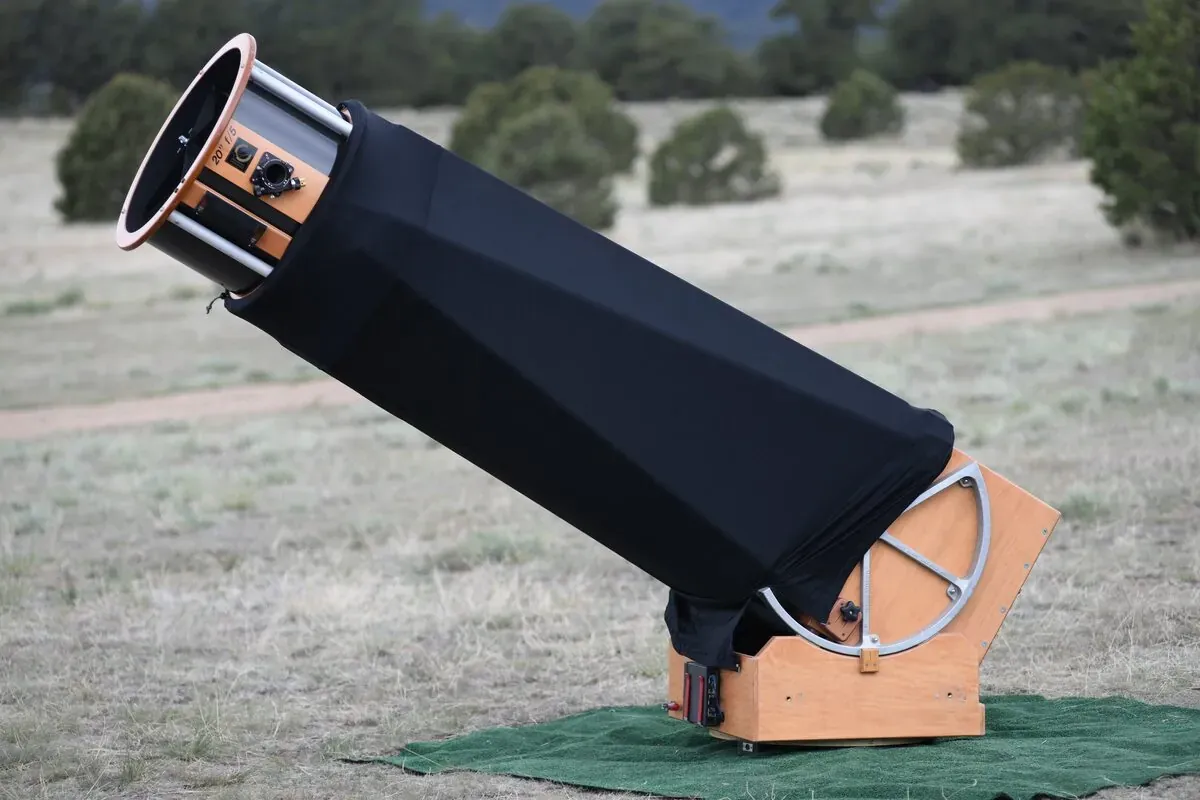

Dobsonian mounts

A Dobsonian is a special — and brilliant — kind of alt-azimuth mount. Instead of a tripod, the telescope sits in a low, boxy rocker box that pivots on simple bearings for the up–down motion and rotates on a flat base for the left–right motion. Amateur astronomer John Dobson popularized the design in the late 1960s so that large, light-hungry mirrors could be mounted cheaply and stably.

The genius is economic. Because the rocker box costs almost nothing compared with a tripod and head, nearly your entire budget goes into aperture — the diameter of the main mirror, which determines how much light and detail you can see. That is why an 8-inch Dobsonian is the most-recommended first telescope in amateur astronomy. We cover the design in depth in our dedicated Dobsonian telescope guide, and the optics inside it in the Newtonian reflector guide.

Best for: maximum visual aperture per dollar — faint galaxies, nebulae, and globular clusters under dark skies. Weakness: like any alt-az, a basic Dob does not track, so it is a visual-first design. Push-to digital setting circles and motorized GoTo Dobs exist, but for true long-exposure deep-sky imaging you still want an equatorial platform underneath.

Equatorial mounts (GEM and fork)

An equatorial mount is built for tracking. By tilting the right ascension (RA) axis to match the latitude of your location, that axis ends up parallel to Earth’s spin axis — pointing at the celestial pole. The second axis, declination (Dec), is perpendicular to it. Once you complete a polar alignment, a small motor turns the RA axis at exactly one revolution per sidereal day, and your target sits motionless in the eyepiece or on the sensor for as long as you like.

This single-axis tracking with no field rotation is why equatorial mounts are the backbone of deep-sky astrophotography. The cost is weight and ritual: you carry counterweights, you balance both axes, and you align to the pole before each session.

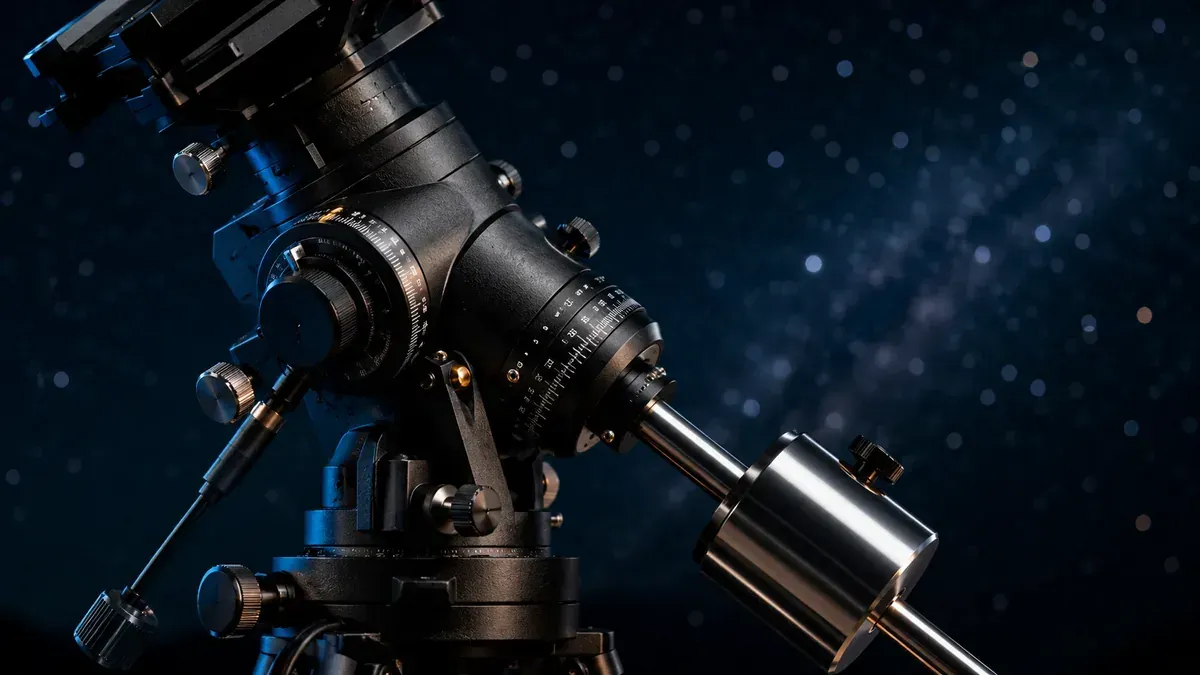

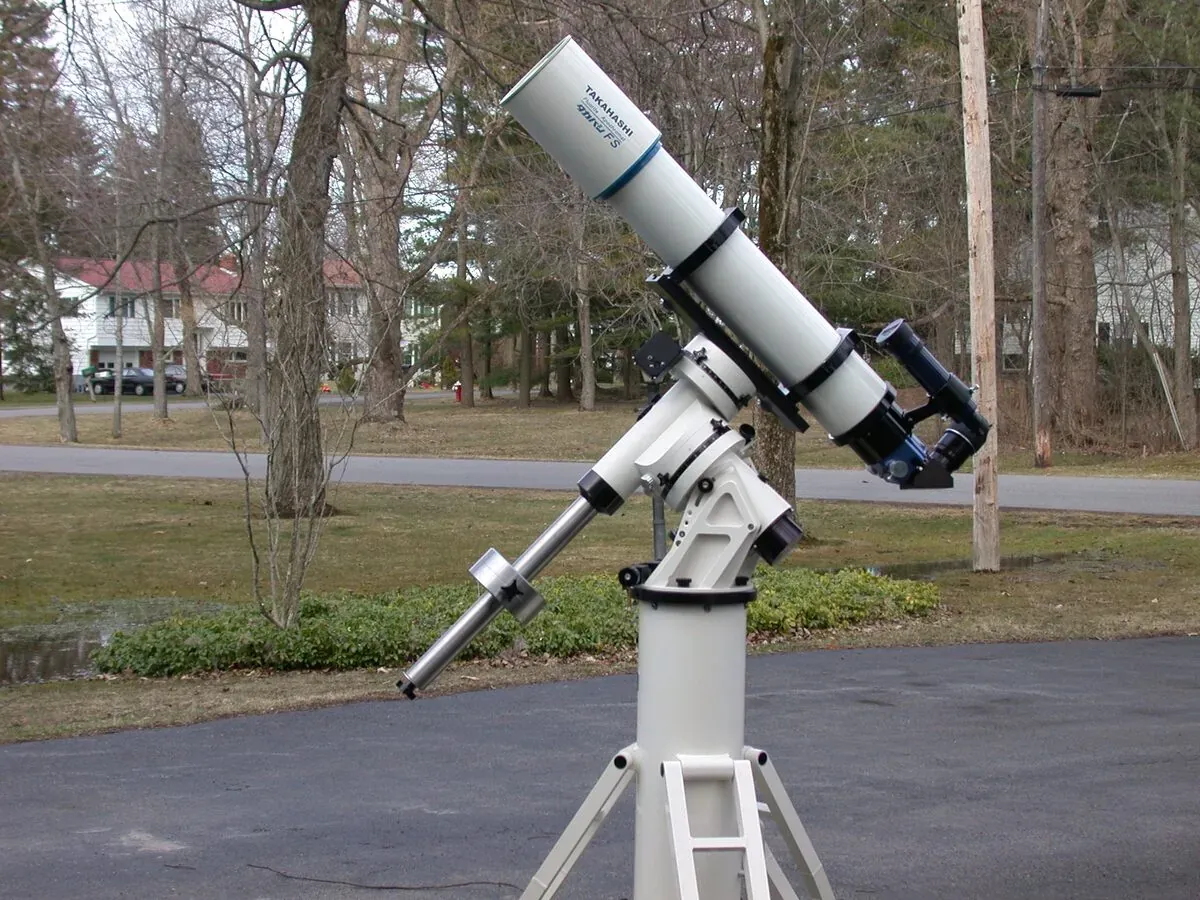

German Equatorial Mount (GEM)

The German Equatorial Mount is the most common imaging mount. The telescope hangs off one side of the Dec axis and a counterweight bar balances it on the other. GEMs are versatile, stable, and available at every price point — from the entry Sky-Watcher EQ5 and HEQ5, through the popular EQ6-R Pro and Celestron AVX, up to observatory-class heads.

The one quirk to know is the meridian flip: when a target crosses the line from due south overhead (the meridian), the telescope would eventually collide with the tripod legs, so the mount must rotate 180° and continue from the other side. Imaging software handles this automatically, but it interrupts a sequence and requires re-centering. It is the price of the GEM’s counterweighted balance.

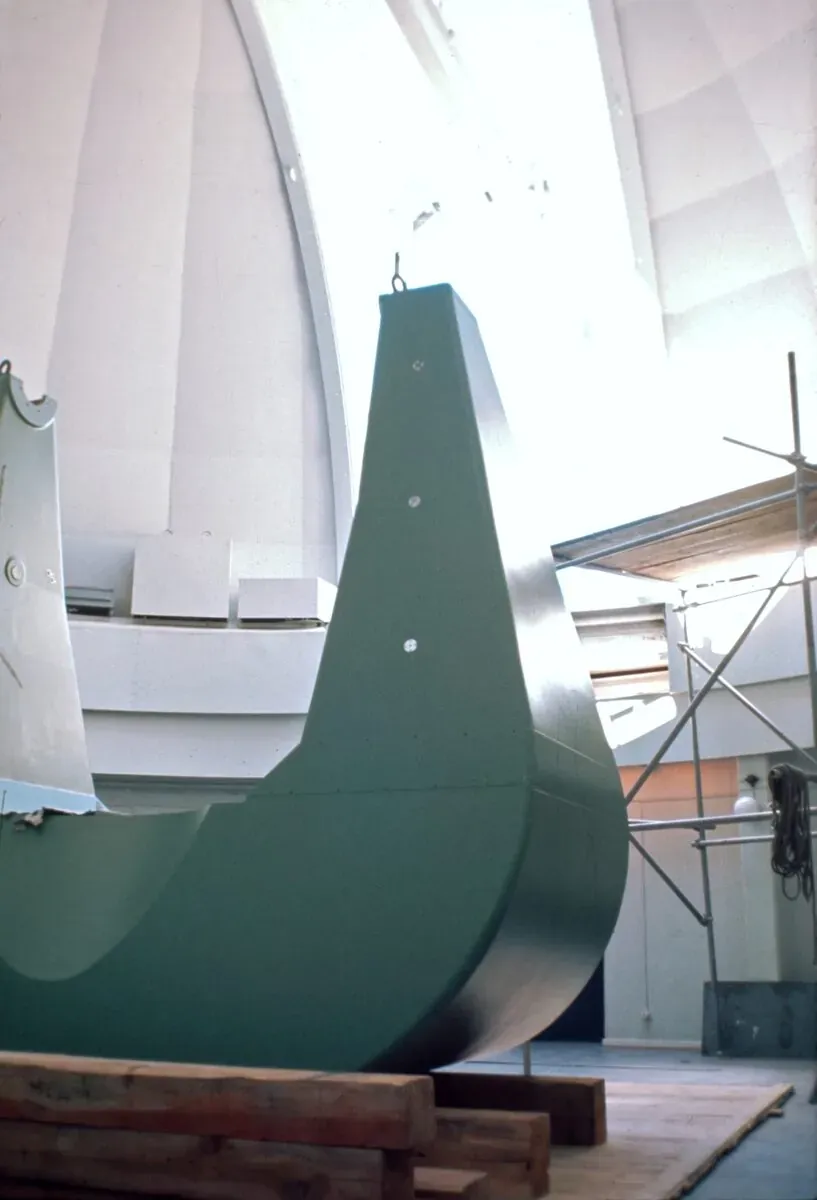

Fork mounts and wedges

A fork mount holds the telescope between one or two arms rather than on a counterweighted bar. Fork mounts are compact and are factory-fitted to many Schmidt-Cassegrain and other catadioptric telescopes (Celestron and Meade especially). In their default form a fork mount works in alt-az mode — excellent for visual use and planetary imaging. Add a tilted equatorial wedge beneath it and the fork becomes a polar-aligned equatorial mount suitable for longer exposures, though fork-on-wedge setups have their own meridian and balance limits. For grab-and-go visual GoTo, a fork mount is hard to beat for convenience.

GoTo and computerized mounts

A GoTo mount adds motors on both axes and a hand controller or smartphone app that holds a database of tens of thousands of celestial objects. After a quick star alignment, you select a target and the mount slews to it automatically, then tracks it. GoTo flattens the steepest part of the learning curve — finding faint objects — and it works on both alt-az and equatorial geometries.

The distinction matters for what you can do:

• Alt-az GoTo (Celestron NexStar, Sky-Watcher AZ-GTi, StarSense Explorer-assisted scopes) tracks well enough for visual use and short planetary clips, but field rotation still limits long deep-sky exposures unless you add a wedge or do electronically-assisted astronomy (EAA) with short sub-exposures.
• Equatorial GoTo (EQ6-R Pro, Celestron CGX, iOptron CEM series) gives you motorized pointing and rotation-free tracking — the standard for serious imaging.

Modern GoTo mounts increasingly pair with plate-solving, where the software photographs the field, identifies the exact star pattern, and corrects the pointing to land your target dead-center. Combined with automation tools such as Voyager observatory-automation software, a GoTo equatorial mount can run an entire imaging night hands-off. To plan which targets actually fit your scope and camera, our telescope field of view calculator shows the framing before you slew.

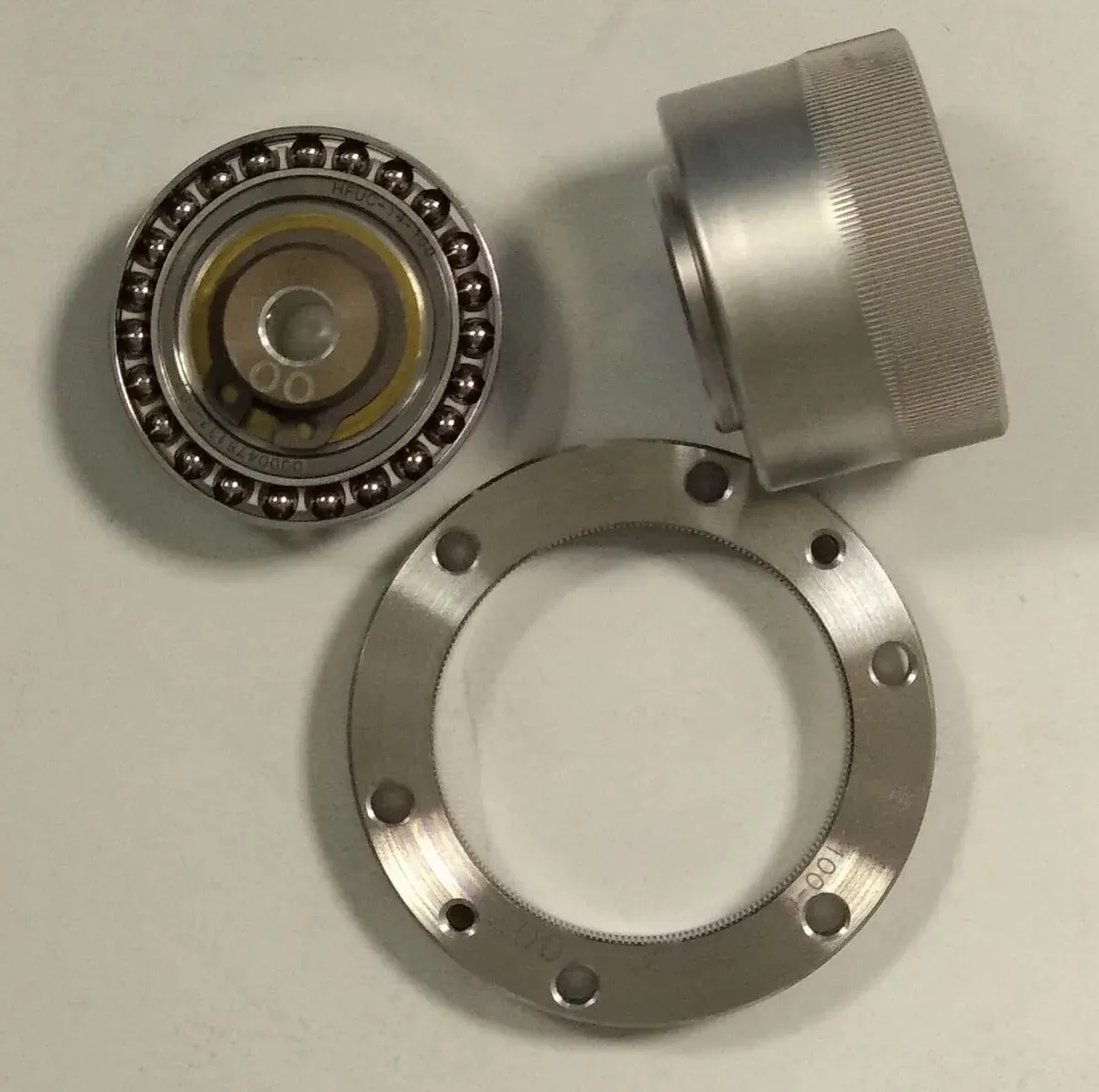

Harmonic (strain-wave) mounts

The biggest change in amateur mounts in a decade is the rise of the harmonic-drive, or strain-wave, mount. Borrowed from industrial robotics, strain-wave gearing achieves a very high reduction ratio in a tiny, near-zero-backlash package — which means a small, light mount head can carry a surprisingly heavy telescope without a counterweight.

That single fact rewrites the portability math. A traditional GEM that carries a 9–13 kg telescope might weigh 15–25 kg with its counterweights and pier. A harmonic mount like the ZWO AM5 carries roughly 13 kg (about 28 lb) imaging while the head itself weighs around 5 kg and needs no counterweight at all. Other examples include the iOptron HEM series and the Pegasus NYX-101. For travelers and balcony observers, the appeal is obvious.

The trade-offs are real but shrinking. Strain-wave gears have a faster, higher-frequency tracking error than precision worm gears, so harmonic mounts essentially require autoguiding for long exposures — you cannot rely on unguided tracking the way you might on a top-tier GEM. They also cost more than entry equatorial mounts. But for grab-and-go deep-sky imaging, the strain-wave mount has become the most exciting category in the hobby, and our astrophotography calculator can help you match one to a realistic focal length and camera.

Star trackers for cameras

A star tracker is a miniature equatorial mount built for a camera and lens rather than a telescope. You polar-align it, attach a DSLR or mirrorless body on a ball head, and it slowly rotates to follow the sky — long enough to capture the Milky Way, constellations, and bright nebulae as untrailed pinpoints. Popular models include the Sky-Watcher Star Adventurer (and the GoTo-enabled Star Adventurer GTi) and the iOptron SkyGuider Pro.

Best for: wide-field nightscapes and a low-cost, ultra-portable entry into tracked imaging. Weakness: limited payload means small lenses only — a tracker will not carry a full telescope. Many imagers start with a tracker, learn polar alignment and stacking, then graduate to a full equatorial or harmonic mount. Shooting from a bright location? Pair tracked wide-fields with the techniques in our light-pollution astrophotography guide.

Classic and unusual mount designs

Beyond the everyday types above lies a century of inventive engineering, each design built to solve one stubborn problem — flexure in a giant telescope, an aching neck at the eyepiece, or how to make a Dobsonian track. You will almost never buy these new, but they round out the whole family tree of the telescope mount, and a few still turn up at star parties.

Classic observatory mounts

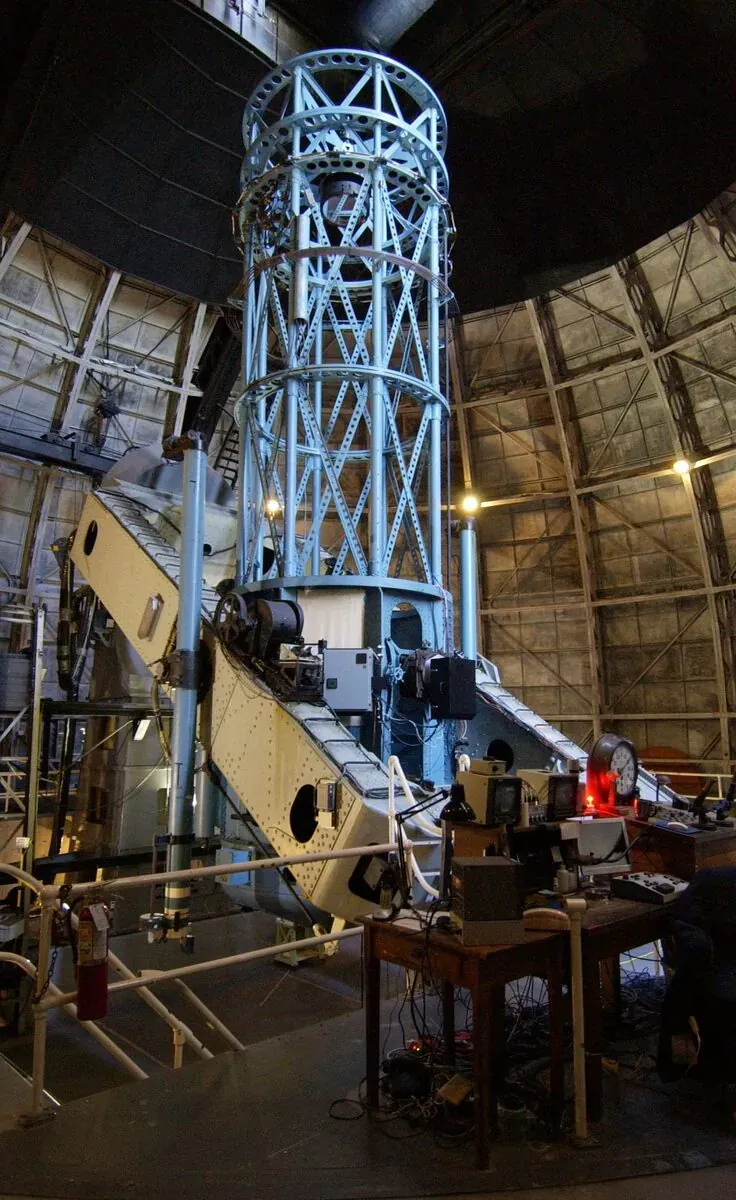

• English (yoke) mount. The telescope is cradled inside a long rectangular yoke whose two ends rest on a north and a south pier, so the polar axis is supported at both ends. That extra support tames the flexure that bends a one-sided German mount, which is why it was chosen for early giants — most famously the 100-inch Hooker Telescope at Mount Wilson (1917), the instrument Edwin Hubble used to reveal the expanding universe. Its one flaw: the upper frame blocks the sky near the celestial pole.
• Horseshoe mount. A brilliant fix for the yoke’s blind spot — replace the closed north bearing with an open, horseshoe-shaped ring the telescope can point straight through, restoring access to the entire sky including Polaris. The 200-inch Hale Telescope at Palomar (1948) rides on a 46-foot horseshoe that floats its 150-ton tube on a thin film of pressurized oil.
• English cross-axis mount. Shaped like a giant plus sign: the right-ascension axis is supported at both ends and the declination axis crosses it at the midpoint, telescope on one end and a counterweight on the other. Exceptionally rigid, it was the standard for large research reflectors for decades.
• Split-ring mount. Here the polar axis itself is a large ring with a gap, so the telescope tube can swing through the opening to reach the pole — another elegant answer to the yoke’s limitation, used on a number of observatory instruments.

Clever amateur designs

• Springfield mount. Designed by artist-astronomer Russell W. Porter in the early 1900s, this equatorial Newtonian routes light through a hollow declination axis to a mirror at the RA axis, so the eyepiece never moves no matter where the scope points. You sit in one comfortable spot all night — a luxury most modern observers would envy.
• Poncet platform (equatorial platform). A tilted, motor-driven platform that sits beneath an altazimuth scope and slowly rotates about a virtual polar axis, turning a non-tracking Dobsonian into a tracking one for about an hour before it must be reset. Invented by Frenchman Adrien Poncet and publicized in Sky & Telescope in 1977, it is still the favorite way to add tracking to a big Dob for high-power viewing or short exposures.

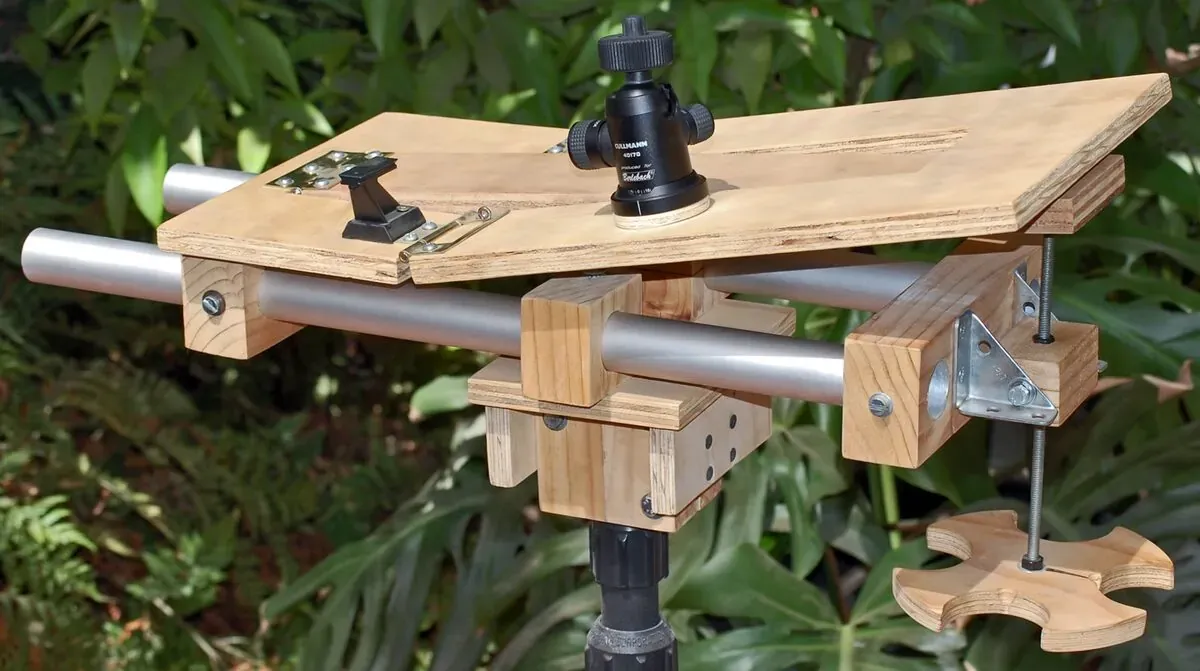

• Barn-door (Scotch) tracker. The simplest equatorial mount ever made: two hinged boards aligned with the pole, opened by a hand-turned or motorized screw to follow the stars. Built by countless beginners for the price of a hinge and a bolt, it carries a camera and lens for wide-field Milky Way shots — a homemade cousin of the commercial star tracker.
• Alt-alt (altitude-altitude) mount. A rare design using two perpendicular altitude axes instead of the usual altitude-and-azimuth. It sidesteps the “zenith blind spot” that stalls an ordinary alt-az mount directly overhead, which makes it handy for tracking fast satellites across the top of the sky.

Types of telescope mounts at a glance

Here is how the main telescope mount types compare for the decisions that matter most — tracking, imaging suitability, portability, and price.

Mount capacity and the payload rule

Every mount has a rated payload — the maximum weight it is designed to carry — and respecting it is the difference between sharp stars and a vibrating disappointment. But the rated number hides a crucial distinction.

Manufacturers quote a visual payload. That figure assumes you are looking through an eyepiece, where a brief wobble settles and does no harm. Imaging is far less forgiving: the shutter is open for minutes, so even small flexure and settling time become trailed stars. The widely used field rule is to load an equatorial mount to no more than about 50–66% of its rated capacity for astrophotography. A mount rated for 13 kg visually is realistically a 7–9 kg imaging mount once you account for the camera, guide scope, dew heaters, and cables.

Three practical takeaways:

• Weigh the whole rig, not just the tube — rings, dovetail, finder, camera, and accessories add up fast.
• Buy the heaviest mount you can carry and afford. Mount capacity is the one place where over-spending almost always pays off later.
• Balance carefully. A well-balanced load on a smaller mount can outperform an overloaded bigger one.

Sampling fewer photons because your stars are bloated is a waste of clear skies. If you are dialing in resolution and framing, the pixel scale guide explains how mount steadiness, focal length, and sensor size work together.

How to choose the right mount

Forget brands for a moment and answer one question: what do you actually want to do? Your goal points straight to a mount class.

• “I want to look at the Moon, planets, and bright objects, simply.” → A sturdy manual alt-az, or a tabletop/8-inch Dobsonian. Cheapest path to real views.
• “I want to find faint objects easily but stay visual.” → An alt-az GoTo or GoTo Dobsonian. The database does the star-hopping for you.
• “I want to photograph nebulae and galaxies.” → A German equatorial or harmonic mount with autoguiding. This is non-negotiable for deep-sky.
• “I want to travel light or shoot from a balcony.” → A harmonic (strain-wave) mount, or a star tracker for camera-and-lens work.
• “I want one mount that does a bit of everything.” → A mid-range equatorial GoTo (or a fork SCT with an optional wedge) balances visual ease and imaging capability.

Match that to your telescope’s weight using the payload rule above, then buy the most capable mount your budget allows. If you have not settled on the telescope itself yet, start with the types of telescopes guide and the people who built the field in our famous astronomers hub.

Setting up, polar alignment, and tracking

Alt-az mounts need almost no setup: level the tripod, point, and go. Equatorial and harmonic mounts ask for one extra step — polar alignment — and understanding it removes most beginner frustration.

Polar alignment means aiming the mount’s RA axis at the celestial pole so its single tracking motion matches Earth’s rotation. In the Northern Hemisphere that is close to Polaris. The fastest methods are a built-in polar scope, a phone app, or software like SharpCap’s polar-alignment routine, which can get you within an arcminute in a few minutes. Rough alignment is fine for visual use; precise alignment matters for long exposures.

Two more tracking concepts to know once you are imaging:

• Periodic error and autoguiding. No worm gear is perfect, so tracking wanders slightly over each gear cycle. A small guide camera watching a star, running software like PHD2, sends tiny corrections to keep the star locked. Harmonic mounts in particular rely on guiding.
• The meridian flip. As covered above, a German equatorial mount must rotate sides when a target crosses the meridian. Plan a target’s position, or let imaging software automate the flip.

None of this is hard once you have done it twice. The reward — a galaxy sitting rock-still on your sensor for an hour — is what the whole mount conversation is really about.

Frequently asked questions

What is a telescope mount?

A telescope mount is the mechanical platform that holds a telescope steady, lets you point it at a target, and on tracking models follows that target as the sky drifts. It typically includes a two-axis head, a tripod or pier, and — on motorized mounts — drive motors and electronics. The mount is as important as the optics: a shaky mount ruins the view no matter how good the telescope is.

What are the two main types of telescope mounts?

The two fundamental types are altazimuth and equatorial. Altazimuth (alt-az) mounts move up/down and left/right like a camera tripod and are simplest for visual use. Equatorial mounts tilt one axis to match Earth’s rotation so a single motion tracks the stars without field rotation, which is essential for long-exposure astrophotography. Dobsonian, fork, GoTo, harmonic, and star-tracker mounts are all variations on these two ideas.

Is an alt-azimuth or equatorial mount better for beginners?

For most beginners, an alt-azimuth mount is better: it is cheaper, lighter, faster to set up, and needs no polar alignment, making it ideal for visual observing and planets. Choose an equatorial mount only if your main goal is long-exposure deep-sky astrophotography, where its rotation-free tracking is required.

Do I need an equatorial mount for astrophotography?

For long-exposure deep-sky astrophotography of galaxies and nebulae, yes — you need an equatorial or harmonic mount so the field does not rotate during the exposure. For short planetary and lunar imaging, where you capture fast video, an alt-az GoTo mount works well. Wide-field nightscapes can be done on a small star tracker.

What is a German equatorial mount (GEM)?

A German equatorial mount holds the telescope on one side of the declination axis and balances it with a counterweight on the other. It is the most common mount for astrophotography because it is stable, versatile, and available at every price. Its main quirk is the meridian flip: it must rotate 180° when a target crosses due south to avoid hitting the tripod.

What is an English or yoke telescope mount?

An English mount — also called a yoke mount — cradles the telescope inside a rectangular frame supported on two piers, holding the polar axis at both ends to resist flexure. It was used on early giant telescopes such as the 100-inch Hooker at Mount Wilson, but its frame blocks the view near the celestial pole. The horseshoe mount, as on the 200-inch Hale Telescope, is a modified yoke that opens the north bearing to restore full-sky access.

What is a Dobsonian mount?

A Dobsonian is a simple, low-cost altazimuth mount in which the telescope sits in a wooden rocker box instead of on a tripod. Popularized by John Dobson, it puts almost all of your budget into mirror aperture, which is why an 8-inch Dobsonian is the classic recommendation for a first telescope. Like any alt-az design, a basic Dobsonian does not track the sky, so it is best for visual observing.

What is a harmonic (strain-wave) telescope mount?

A harmonic mount uses strain-wave gearing — the same technology found in industrial robots — to carry a heavy telescope with little or no counterweight in a very small, light package. Models such as the ZWO AM5 and iOptron HEM make portable deep-sky imaging practical. The trade-off is that strain-wave gears need autoguiding for long exposures and cost more than entry equatorial mounts.

How much weight can a telescope mount hold?

Each mount has a rated payload, but that figure assumes visual use. For astrophotography, load the mount to only about 50–66% of its rated capacity, because long exposures expose every small vibration and flexure. Always weigh the entire rig — tube, rings, camera, guide scope, and accessories — and buy the heaviest, sturdiest mount you can carry and afford.

Keep exploring

Now that you know how the sky is held steady, dig into the optics that sit on top. Compare refractor telescopes, reflector telescopes, and the full types of telescopes pillar, then plan your first targets with our field of view calculator and astrophotography fundamentals guide.
