A catadioptric telescope is a compound optical system that combines refractive lens elements and reflective mirrors in a single instrument, folding a long focal length into a short, portable tube. The name itself tells the story: it fuses catoptric (Greek for mirror-based optics) with dioptric (lens-based optics). That hybrid approach is why these telescopes—Schmidt-Cassegrains, Maksutovs, and their relatives—have become the most popular “do-everything” scopes for visual observers and astrophotographers alike.

Quick answer: A catadioptric telescope uses both a lens (a thin corrector plate or meniscus) and curved mirrors to form an image. The corrector lets designers use cheap, easy-to-make spherical mirrors while a folded light path delivers a long focal length in a compact tube. The two big families are the Schmidt-Cassegrain (SCT), prized for versatility and imaging, and the Maksutov-Cassegrain, prized for sharp high-power planetary and lunar views.

This guide is the hub for the entire compound-telescope family. Below you’ll find what catadioptrics are, why they exist, every major design explained, and links down to the dedicated Schmidt-Cassegrain and Maksutov guides. For the full landscape of optical designs, start at the telescopes pillar.

• What is a catadioptric telescope?
• Why catadioptric designs exist
• The Schmidt camera: the ancestor
• The catadioptric family, design by design
• Pros and cons of catadioptrics
• Catadioptric vs reflector vs refractor
• How to choose among catadioptrics
• Frequently asked questions
• The bottom line

What is a catadioptric telescope?

A catadioptric telescope is one that forms its image using a combination of mirrors and lenses, rather than relying on mirrors alone (a reflector) or lenses alone (a refractor). The defining feature is a lens called a corrector—placed at or near the front of the tube—working together with one or more curved mirrors.

The word breaks down cleanly:

• Catoptric – the science of reflection, from mirrors.
• Dioptric – the science of refraction, from lenses.
• Catadioptric – an optical system that uses both at once.

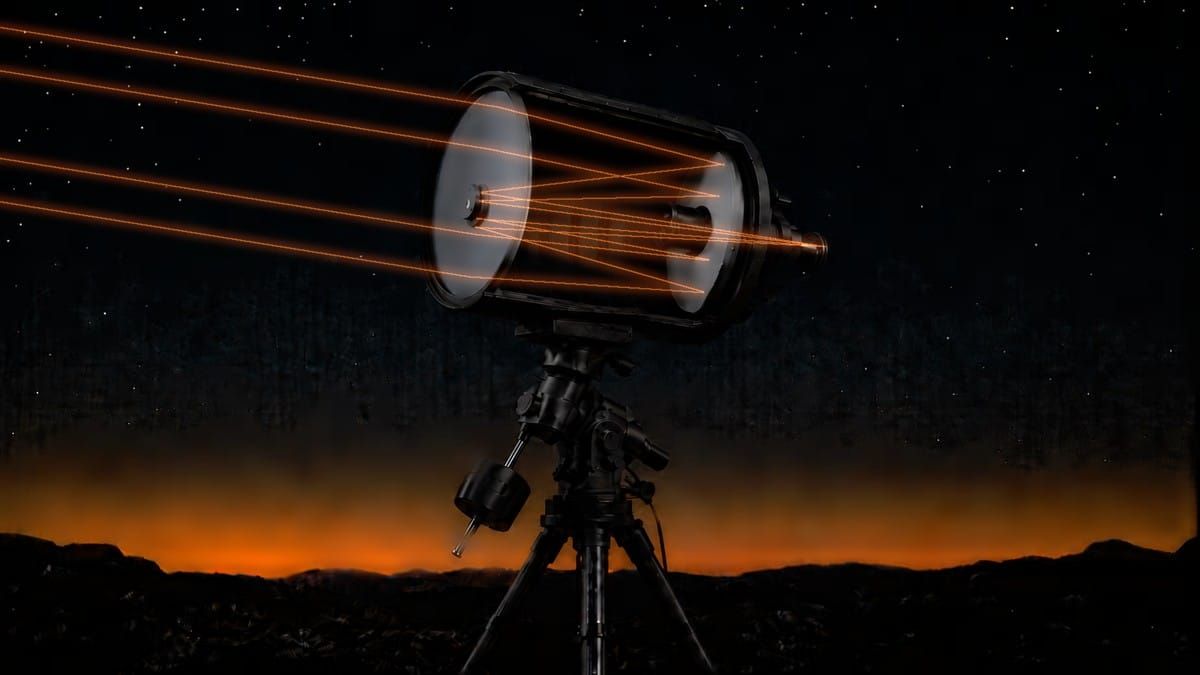

In a typical modern catadioptric, light enters through a thin corrector lens, travels down the tube to a concave primary mirror, bounces forward to a convex secondary mirror, and is then reflected back through a hole in the primary to the eyepiece or camera. That triple-fold is what packs a focal length of, say, 2,000 mm into a tube barely 18 inches long. The same compactness that suits visual touring also makes these scopes natural deep-sky imagers—a galaxy like the Whirlpool is well within reach of a modest catadioptric on a tracking mount.

Why catadioptric designs exist

To understand why these telescopes were invented, you have to understand the problem they solve. The cheapest mirror to grind and polish accurately is a spherical mirror—its surface is a simple section of a sphere, and that simplicity makes it fast and repeatable to manufacture. The trouble is that a spherical mirror suffers badly from spherical aberration: rays striking the edge focus at a different point than rays near the center, smearing the image.

Classic reflectors dodge this by using a more complex parabolic mirror, which is harder and more expensive to figure. Catadioptric designs take a different route. They keep the easy-to-make spherical mirror and add a thin corrector lens at the front whose job is to introduce exactly the opposite aberration, canceling the mirror’s error before the light ever reaches it. If you want a fuller primer on aberrations and how they shape an image, the astrophotography fundamentals guide covers the optical groundwork.

The payoff is threefold:

1. Cheaper optics. Spherical surfaces are easier to mass-produce than parabolas.
2. A short, closed tube. The folded light path makes the instrument compact and tightly sealed against dust and air currents.
3. Long focal length in a small package. High magnification potential and a tube you can actually carry.

That combination of portability, sealed optics, and long focal length is exactly what makes catadioptrics so friendly to GoTo mounts, computerized tracking, and astrophotography. For background on why focal length and aperture matter, see the pillar’s specs and design overview.

The Schmidt camera: the ancestor

The catadioptric story begins with Estonian-German optician Bernhard Schmidt, who built the first Schmidt camera in 1930 at the Hamburg Observatory in Bergedorf. Schmidt’s insight was the aspheric corrector plate: a thin, almost flat lens with a subtle, complex curve placed at the center of curvature of a spherical primary mirror. The plate corrected the mirror’s spherical aberration across an exceptionally wide field.

The Schmidt camera was—and is—a pure astrograph. It has no eyepiece; it was designed to photograph huge swaths of sky at once. Its one quirk is a curved focal plane, so the film or detector has to be bent to match. Famous survey instruments like the 48-inch Samuel Oschin Telescope at Palomar were Schmidt cameras, used to map the entire northern sky—the kind of all-sky photographic atlas that fed decades of follow-up research. Understanding that wide-field photographic heritage is the key to understanding why the modern descendants of the Schmidt camera are so imaging-friendly.

The Schmidt camera itself isn’t something you’ll buy for the backyard, but its corrector plate is the direct ancestor of the Schmidt-Cassegrain in nearly every driveway today—and, as you’ll see below, of the fast f/2 astrographs that dominate modern deep-sky imaging.

The catadioptric family, design by design

Catadioptrics aren’t a single product—they’re a family tree. Here’s each major branch, what makes it distinct, and where to go deeper.

Schmidt-Cassegrain (SCT)

The Schmidt-Cassegrain is the best-selling catadioptric on Earth. It marries Schmidt’s corrector plate with the Cassegrain mirror arrangement: light passes through the full-aperture corrector, hits a spherical primary, reflects to a convex secondary mounted on the inside of the corrector, then returns through a central hole in the primary. The result is a typical focal ratio around f/10 in a remarkably stubby tube. Commercial SCTs were popularized by Celestron in the 1970s and remain the default versatile scope. Read the full Schmidt-Cassegrain guide →

Standard SCT vs. EdgeHD, ACF, and RASA

One buying decision matters more than any other in this family: a plain SCT versus an aplanatic, coma-corrected variant. A classic f/10 SCT shows off-axis coma and a curved field, so stars near the edge of a camera frame bloat into little comet shapes. Celestron’s EdgeHD and Meade’s ACF (Advanced Coma-Free) add internal field-correcting optics that flatten the field and remove that off-axis coma—the named, built-in fix for the field-curvature problem casual SCTs leave to an add-on flattener. If imaging is your goal, an aplanatic SCT is usually worth the premium.

At the extreme end sits the Rowe-Ackermann Schmidt Astrograph (RASA), a fast f/2 imaging-only catadioptric descended directly from the Schmidt-camera lineage. The camera mounts at the front where the secondary would be, there is no eyepiece, and the system gathers light roughly 25× faster than an f/10 SCT—ideal for short-exposure deep-sky work but useless for visual observing. Match the resolution and framing to your sensor with the pixel scale guide before committing to any of these.

Maksutov-Cassegrain and Maksutov-Newtonian

Developed by Soviet optician Dmitri Maksutov—who invented the design in 1941 and published it in 1944 in his paper “New catadioptric meniscus systems” (Albert Bouwers in the Netherlands arrived at a similar meniscus design independently around the same time)—the Maksutov replaces the Schmidt’s complex aspheric plate with a thick, all-spherical meniscus corrector, a deeply curved lens that’s easier to figure than a Schmidt plate because every surface is spherical. In the Maksutov-Cassegrain, a small aluminized spot on the inside of the meniscus often serves as the secondary mirror, giving long focal ratios (f/12 to f/15) and famously sharp, high-contrast views. The Maksutov-Newtonian instead diverts light out the side to an eyepiece, trading compactness for an even flatter, wider field. Maks dominate planetary and lunar observing. Read the full Maksutov guide →

Schmidt-Newtonian

The Schmidt-Newtonian fits a Schmidt corrector plate to a Newtonian reflector. The corrector primarily corrects spherical aberration, allowing a fast spherical primary, while the light still exits the side of the tube as in a standard Newtonian reflector. It does not substantially correct coma, so—like any fast Newtonian—a Schmidt-Newtonian still shows field coma toward the edges and usually wants a separate coma corrector for clean wide-field images. These scopes deliver fast focal ratios (often around f/4 to f/5) for wide-field imaging, though they’re bulkier than a Cassegrain-style fold.

All-spherical sub-aperture-corrector Cassegrains

Some clever designs avoid a full-aperture corrector entirely, placing a small lens group inside the tube instead. The Argunov-Cassegrain uses a sub-aperture corrector in place of a conventional convex secondary: a group of three air-spaced, all-spherical elements—two lenses plus a “Mangin” mirror (a silvered lens) as the rearmost element. The Klevtsov-Cassegrain, used in several commercial scopes, pairs a spherical primary with a small sub-aperture corrector made of a meniscus lens and a Mangin mirror. Both achieve good correction using only spherical surfaces, which keeps manufacturing simpler.

Corrected Dall-Kirkham (CDK)

The Dall-Kirkham is technically a reflector (an ellipsoidal primary plus a spherical secondary), but the popular corrected Dall-Kirkham (CDK) adds a lens corrector group near the focus to flatten the field and eliminate coma over a wide, photographically useful image circle. Because it blends mirrors with a refractive corrector, the CDK is a catadioptric hybrid, and it’s a favorite for high-end deep-sky astrophotography rigs.

Pros and cons of catadioptric telescopes

Every design is a set of trade-offs. Here’s the honest balance sheet for catadioptrics as a whole.

Advantages

• Compact and portable. A 2,000 mm focal length in a tube you can lift one-handed.
• Versatile. The same SCT handles the Moon, planets, and galaxies competently.
• Sealed optics. The front corrector closes the tube, reducing dust and air currents inside.
• GoTo- and imaging-friendly. Short, balanced tubes sit nicely on computerized fork and equatorial mounts.
• Long focal length. Excellent reach for high-magnification planetary work.

Disadvantages

• Higher cost per inch of aperture than a simple Newtonian or Dobsonian.
• Cool-down time. The sealed tube and thick corrector hold heat, so the optics need time to reach ambient temperature before they perform well.
• Corrector dewing. The exposed front corrector plate readily collects dew, which can end a session early—the direct downside of that sealed-front design.
• Central obstruction. The secondary mirror blocks part of the aperture, slightly lowering contrast versus an unobstructed refractor. SCTs typically obstruct about 34–37% of the aperture; Maksutovs are often nearer 25–30% or less, which is the real optical reason Maks edge out same-size SCTs on planetary contrast.
• Field curvature and edge aberrations. Many catadioptrics show some field curvature, and a classic SCT benefits from a separate field flattener or reducer (or an aplanatic EdgeHD/ACF design) for wide-field imaging.
• Mirror shift and focus quirks. Moving-primary focusing (common on SCTs) can shift the image slightly; many imagers lock the mirror and add an external focuser.

Collimation, dew, and maintenance

Catadioptrics are famously low-fuss, but the two families differ. An SCT is collimated by three small screws on the secondary holder—there is no primary adjustment—and you tune it with a defocused star test, nudging the screws until the out-of-focus star shows a perfectly concentric ring pattern. It rarely needs doing, but it is worth knowing how. A standard Maksutov is effectively factory-collimated and sealed, so it almost never needs adjustment and is close to maintenance-free. For both, plan on a dew shield and ideally a heated dew strap around the front cell: because the corrector sits exposed at the very front of the tube, it dews far more readily than a reflector’s primary mirror, which sits protected deep inside.

Catadioptric vs reflector vs refractor

The three great families of telescope optics each excel at something different. A refractor uses lenses only and delivers crisp, high-contrast views with no central obstruction, but large apertures get heavy and expensive fast. A reflector uses mirrors only and offers the most aperture per dollar—the reason Dobsonians dominate deep-sky observing—but the tubes are long and bulky. Catadioptrics sit in the middle: compact, versatile, and built for portability and imaging.

For a deeper side-by-side of every optical class, see the full breakdown on the telescopes pillar.

How to choose among catadioptrics

If you’ve decided a compound scope is right for you, the choice usually comes down to two designs and what you plan to look at.

Choose a Schmidt-Cassegrain for versatility and imaging

An SCT is the Swiss Army knife. Its faster f/10 native ratio (and the f/6.3 or f/7 you get with a reducer) suits deep-sky targets like the Whirlpool Galaxy as well as the planets. In real-world product terms, the popular lines are Celestron’s NexStar, CPC, and Evolution and Meade’s LX series. Apertures of 8, 9.25, and 11 inches are widely available, and the ecosystem of focal reducers, field flatteners, and wedges is enormous.

For most buyers the sweet spot is the 8-inch f/10 SCT: roughly an entry-to-mid price tier, light enough to carry assembled, yet large enough to image galaxies and split tight doubles. A 6-inch is the budget-friendly step down; 9.25- and 11-inch tubes move into a serious-imaging tier where mount and accessory costs climb quickly. If you want one telescope to do everything, especially with a camera, start with the 8-inch.

Choose a Maksutov for planetary and lunar sharpness

A Maksutov-Cassegrain’s long focal ratio, small central obstruction, and excellent correction make it a planetary, lunar, and double-star specialist. Its high-contrast views of the Moon, Jupiter, and Saturn are superb. Common 90–127 mm Maks—Sky-Watcher’s Skymax line and Celestron’s smaller models among them—make outstanding grab-and-go scopes at a modest price, while the boutique Questar sits at the premium end. The trade-off is a narrower field and longer cool-down, so a Mak is less ideal for sprawling nebulae or fast wide-field imaging.

Match the scope to your imaging plan

Long focal lengths demand careful guiding and a sensible pixel scale. A fork mount is convenient for visual use, but for long-exposure imaging it needs a wedge to tilt it to the celestial pole and avoid field rotation; many imagers prefer a sturdy equatorial (EQ) mount outright. At 1500–2500 mm of focal length a guide scope flexes too much, so plan on an off-axis guider (OAG), and defeat mirror shift by locking the primary and focusing with an external Crayford or electronic focuser. Before you buy, run the numbers on resolution and framing with our astrophotography calculator and field-of-view calculator, and read up on pixel scale. For the broader workflow, the astrophotography fundamentals guide ties it all together.

Frequently asked questions

What is a catadioptric telescope?

A catadioptric telescope forms its image using both lenses and mirrors. A thin corrector lens at the front cancels the aberration of an inexpensive spherical mirror, while a folded light path packs a long focal length into a short, portable tube. The Schmidt-Cassegrain and Maksutov-Cassegrain are the two most common types.

What’s the difference between an SCT and a Maksutov?

Both are Cassegrain-style catadioptrics, but the SCT uses a thin aspheric Schmidt corrector plate and runs around f/10, making it versatile for deep-sky and planetary work. The Maksutov uses a thick all-spherical meniscus corrector and runs slower (f/12–f/15). Its smaller central obstruction gives sharper, higher-contrast planetary views in a more specialized package.

Do catadioptric telescopes need collimation?

SCTs do, occasionally: you adjust only the three screws on the secondary using a defocused star test until the rings look concentric. There is no primary adjustment. Standard Maksutovs are factory-collimated and sealed, so they almost never need it and are essentially maintenance-free.

What does a focal reducer do on an SCT?

A focal reducer is a lens that shortens the telescope’s effective focal length—an f/6.3 reducer drops an 8-inch f/10 SCT to about f/6.3. That widens the true field of view and speeds the system up for imaging by concentrating light onto each pixel, cutting exposure times. Because native f/10–f/15 scopes deliver high power easily but a narrow field, a reducer (or a long-focal-length, low-power eyepiece) is the standard way to get wider views. The field-of-view calculator shows exactly how much sky you’ll frame.

What can I actually see with a catadioptric telescope?

Visually, the Moon and planets show real detail and subtle color—cloud belts on Jupiter, Saturn’s rings, lunar craters. Most galaxies and nebulae, by contrast, appear as faint grey smudges to the eye, not the vivid color you see in photos; that color and detail come almost entirely from long-exposure imaging. GoTo helps you find targets but still requires a short alignment routine each session, so you’ll learn a little sky either way.

Are catadioptric telescopes good for astrophotography?

Yes. Schmidt-Cassegrains are among the most popular imaging scopes thanks to their long focal length, compact balanced tubes, and huge accessory ecosystem of reducers and flatteners; aplanatic EdgeHD and ACF versions remove off-axis coma, and the f/2 RASA is a dedicated fast astrograph. Maksutovs excel at high-resolution planetary imaging. The main caveats are field curvature on classic SCTs (solved by an aplanatic design or a flattener) and longer cool-down.

Why do catadioptric telescopes need to cool down?

The sealed tube and thick front corrector trap heat from indoor storage. Until the optics and the air column inside the tube reach the outside temperature, thermal currents distort the image. An 8-inch SCT may need 30–60 minutes to stabilize; a heavy Maksutov meniscus can take longer. Pair cool-down with a dew shield, since the exposed corrector also fogs readily.

Who invented the catadioptric telescope?

The lineage runs through Bernhard Schmidt, who built the first Schmidt camera in 1930, and Dmitri Maksutov, who invented the Maksutov design in 1941 and published it in 1944 (Albert Bouwers reached a similar meniscus design independently around the same time). The Cassegrain mirror configuration they build on was described in 1672 and is traditionally attributed to Laurent Cassegrain, a figure about whom little is reliably documented.

The bottom line

A catadioptric telescope is the great compromise of amateur astronomy: by pairing a corrector lens with spherical mirrors and folding the light path, it delivers a long focal length, sealed optics, and real portability in one package. Choose a Schmidt-Cassegrain—ideally an aplanatic EdgeHD or ACF if you image—for a versatile all-rounder, or a Maksutov if razor-sharp planetary views are your priority, and budget for a dew shield either way. From here, dive into the dedicated Schmidt-Cassegrain guide and Maksutov guide, or step back to the telescopes pillar to compare every design side by side. To go deeper on the optics and history, the Wikipedia entry on catadioptric systems and Britannica’s telescope overview are both excellent starting points.
